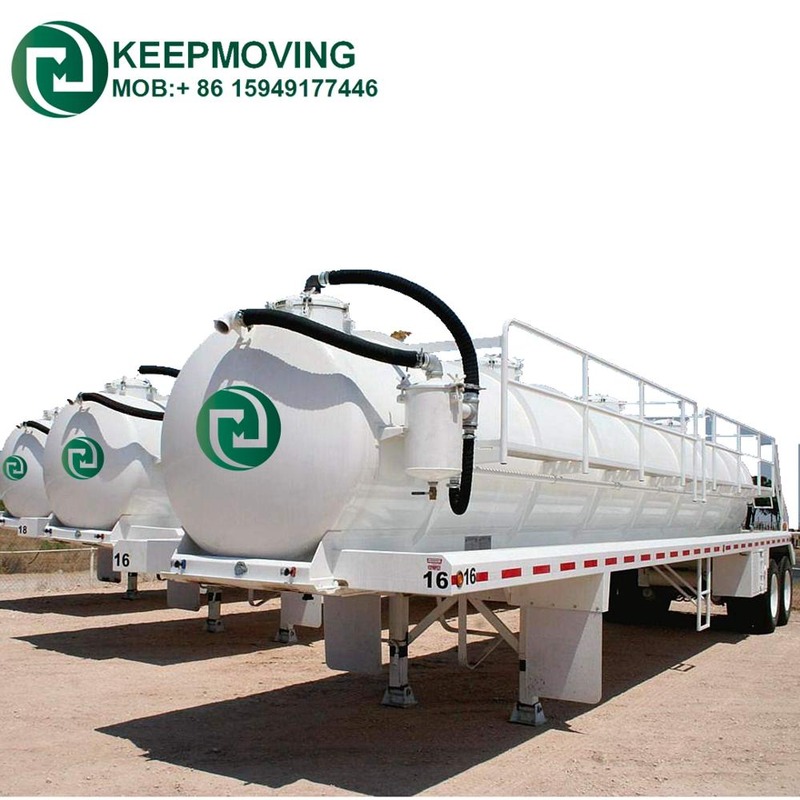

This sewage suction trailer is Suitable for suction,transportation and dumping soil and mud from various sewer man-hole,oil field,water wells and sediment.It is necessary tool for city sanitation department,waste processing company,big factory......,it can help to clean the sewer undergroud,clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water
No.1 | Main Components | Detail Descriptions |
1 | Vacuum tanker | Design pressure +/-2 bar,can be made by carbon steel,stainless or aluminum,tank shell 6mm thick,tank volume 20 to 40CBM,6sution pipe and 6 discharge port,2 pcs 450mm dia manhole on top,on ladder in front of the tank. |
2 | Vacuum system | liquid ring pump,3000CBM/H,locate in front or under the tank,diesel engine brand is KOFO or Commins |
3 | Running system | 2x13ton Fuwa axle,double wheel,8pcs 11.00R22.5 tyre with 8pc rims,merchanical suspension,3.5"kingpin,Jost brand landing gear. |
4 | Brake system | Double line air brakes |
5 | Electronical system | Complete 24V system in water proof installation,rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights. |
6 | Painting | All steel parts are steel sand blasted before painting,painted in two primer and two finish paint,color will as per customer's requirement |
7 | Remarks | Above information just for reference,it could be changed according to customer's requirement,further information please kindly contact Iris Huang. |
We have Obtained CCC,ISO9000,BV certificates,we also obtained many other Honorary certificate issued by loccal Government.
Our main products including Vacuum jetting truck,sewer jetting truck,Biogas liquid vacuum truck,oil tanker trailer,vacuum tank trailer,rear dumper trailer,lowbed trailer, container trailer,side wall cago trailer, chemical liquid tanker truck, bulk power goods tanker trailer,cement tanker trailer, water tanker semi trailer,full semi trailer,and so on. Total 100 style available for sales.
This is Manhole and view inside of the vacuum tanker.
The sewage suction trailer is nude packing,before delivery,we will put all small parts inside the tank body,then transport to Shanghai port by Tractor.
Following photos show some of our customers came to visit us from different countries, we warm welcome more friends from all over the world come to visit us in the near future!!!
