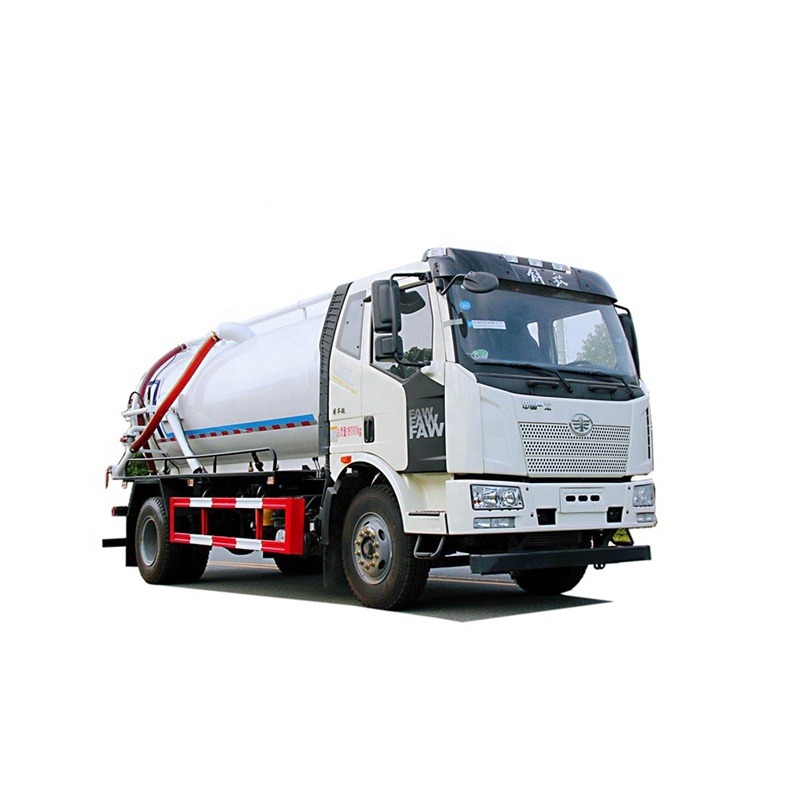

Faw 10CBM Vacuum Sewage Suction Trucks for sale
I . DETAILED VIEW OF SEWAGE SUCTION TRUCK
II. SPECIFICATION OF SEWAGE SUCTION TRUCK
|
Vehicle specification |
||||
| General | Gross weight | 15600kg | ||
| Curb weight | 7550kg | |||
| Rated load weight | 7855kg | |||
| Dimension |
8260×2480×3200mm |
|||
| Wheelbase | 4500mm | |||
| Axle load |
5600/10000kg |
|||
| Cab | Crew seat | 3 | ||
| Type | Sleeper, tilting cab | |||
| Chassis | Chassis brand | Faw | ||
| Drive type | 4X2, manual, LHD | |||
| Tire | 9.00-20 | |||
| Engine | Engine model | CA4DK1-18E51 | ||
| Horsepower | 190hp | |||
| Displacement | 4764ml | |||
| Emission standard | Euro 5 | |||
|
The special fuction specification |
|||
| Tank volume | 10 m3 | ||
| Sewage suction pump | Vacuum pump | ||
| Max time of fullfilling the tank | 5 min | ||
| Max time of empty the tank | 4 min | ||
| Max suction depth | 8 m | ||
| Diameter of outlet/inlet | 50 mm | ||
| Working pressure | 8500Pa | ||
| Theoretical flow | 120L/S | ||
| Standard configuration |
1. tank(material: carbon steel, stainless steel, PP) 2. vacuum sewage suction pump 3. PTO 4. transmission shaft 5. moisture separator 6. oil-water separator 7. Multiple way reversing valve 8. discharge valve 9. sewage view window 10. vacuum pressure gauge 11. Pipe network system 12. Hydraulic system 13. hand washing device |
||
|
Optional configuration |
1. Liquid level view tube 2. View window at the rear part 3. Hydraulic alarm 4. Water sprinkler and high pressure cleaning function |
||
III. DESCRIPTION OF SEWAGE SUCTION TRUCK
IV . SEWAGE SUCTION TRUCK SERIES
V . SEWAGE SUCTION TRUCK WORKSHOP
VI . TRANSPORTATION & SHIPPING
VII . ABOUT US
